BATTERY CHAIN HOIST
Category: Lifting-Equipments
Features
- Alloy-steel die-cast hooks with wide opening and safety latches.
- Lightweight, compact aluminum-alloy housing for easy handling.
- High-speed series-wound brush motor offering efficient performance.
- Industrial 2-pin quick connector for secure power/control switch connections.
- Grade 80 alloy-steel load chain (4mm) resisting fatigue, wear, and corrosion.
- Friction clutch / brake system enabling motor to idle under overload to prevent damage.
- Robust drive train with 3-stage planetary and 2-stage spur speed-reducing gears.
- One-piece HDPE chain container for superior tensile strength and durability.

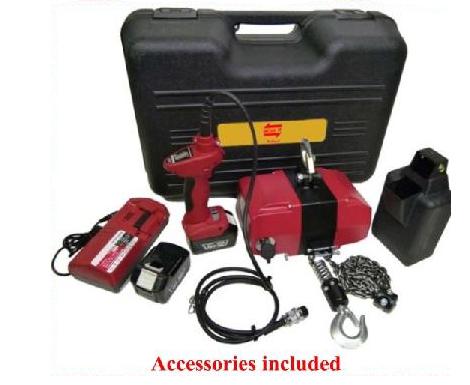

Included Components
- Battery chain hoist with 4.0mmx4m load chain x1.
- Top hook assemblyx1.
- Bottom hook assembly x1.
- HDPE chain container x1.
- Trigger switch set x1, consisting of:
- Trigger: stepless variable-speed control.
- Reverse switch: left = forward drum rotation; right = reverse.
- 3m flexible PVC control cord.
- Quick-connect plug for easy controller attachment.
- Battery-status LED indicator.
- Overload-warning buzzer for enhanced safety.
- High-performance rechargeable Li-ion batteries (DC 24V, 4.0Ah) x2 — ~20-25min continuous runtime under full load.
- 220V/50Hz/1-phase charger & adapter x1.
- Operation manual x1.
- Color presentation box x1.
Specifications
- Rated capacity: 500kg.
- Lifting speed: 2.2m/min at full load.
- Load chain: 4.0x12mmx4m (Grade 80); longer lengths available.
- Power system: DC24V rechargeable Li-ion battery.
- Battery runtime: 20-25min continuous use under full load.
- Safety device: overload-protection system.
- Overload indicator: green (full load), yellow (medium), red (weak).
- LED load-warning alarm: buzzer sounds on overload.
- Hoist weight/gross weight: 9.4kg / 17.7kg.
