FEATURES

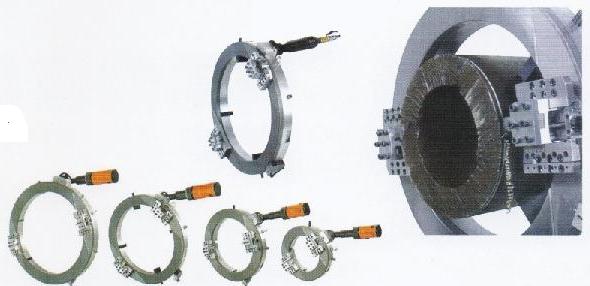

u Cuts
And Bevels Varied Pipe Thickness With Just Change Of Interchangeable Bits
u Portable
- External Mountable Of Its Type For Pipe Cutting And Bevelling Applications
u Low
Friction Adjustable Bearing Provides Maximum Stability And Extended Machine
Life
u Bearing
And Sliding Parts Are Totally Enclosed For Operational Safety And Long Life
u Easliy
Splits Into Halves To Mount On The Outside Diameter Of The Pipes On-Line
u Cutting
& Bevelling Can Be Done In Single Set Up Or Else Two Tool Bits For Same
Operation Can Be Used
u Available
In Pneumatic, Hydraulic And Electrical Drive.
u Bevels
And Cuts Material Like MS, Carbon Steel, Alloy Steels, Stainless Steels,
Inconel, Etc.
u Size
Range : 3/4” - 03”, 03”-08”,06”-12”, 10”-16”,18”-24”,26”-32”,36”-42”,40”-48”

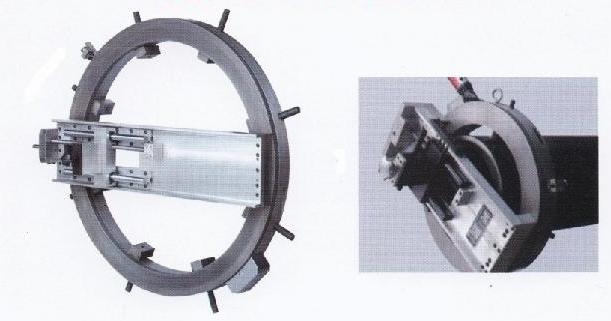

This
Machine Is Researched And Manufactured According To The Operation Of
Long-distance Pipeline And Flange. We Have Independent Intellectual Property.
Outside Calipers Is Fixed In Proper Position, High Stiffness Of Structural
Support, Fulfill The Wide Cutting Range, Easy Operation, High Efficiency. It
Can Process Chute/flume/sealing Surface And Blank Flange, Tube Plate Of Heat
Exchange.
u
Swivel Tool Post With 360 Power Feed,
Wide Range Use.
u
Feed Hand Wheel Of Horizontal And
Vertical Tool Post With Scale, Precise And Convenient Regulation.
u
Tool Post Can Feed Automatically In Both
Axial And Radial, Processed Precision Is Guaranteed.
u
Adjustable Hydraulic Drive Motor,
Adjustable Speed, Strong Power Meets Different Requirements Of Customers.
u
Maximum Depth Of Roughing Processing Is
1.5mm.
u
Pneumatic Motor Is Optional, Used For
Proof-explosion On-site Operation.
The
ID Mounted Beveling Operation Utilizes An Expandable Mandrel Which Is Slid Into
The Open End Of The Pipe. Draw Nut Is
Tightened, Which Expands The Mandrel Blocks Up A Ramp And Against The ID
Surface For Positive Mounting, Self Centered And Squared To The Bore. As The
Tool Bit Is Fed In To The Material From The End, Bevel Is Produced Which
Confirms To The Angle Predetermined By The Angle Ground In To The Bit. Bits Are
Available For Practically Any Material Or Beveling Required, And Bits Can Be
Custom Made For Any Form Tooling Operation.
Features
u
Cold Beveling
u
Fast, Precision On-site Beveling
u
Minimal Axial And Radical Clearance
u
Light Weight And Compact Design
u
Easy Set-up & Robust Operation
u
Electric At Pneumatic Drive
ID
MOUNT END PREP BEVEL
